The vibration exciter SE-10 with a flexural guidance system is a high-tech product that is a reliable tool for
vibration testing in research and development as well as for daily use in calibration laboratories.
A force rating of 100 N and the high acceleration amplitudes of up to 60 gn allow for a wide range of applications
in vibration tests.

The rugged design, light armature and well-aligned guidance system (with low transverse motions, high
radial and low axial stiffness) make the SE-10 a very good choice for the excitation of structures in modal
testing.

Users of the SE-10 in calibration laboratories appreciate the faster calibration cycle times with low measurement
uncertainties in the frequency range of 3 Hz to 10 kHz - made possible by the optional internal reference
standard accelerometer.

1.Light-weight aluminum armature with rugged stainless steel table surface
2.Efficient electro-dynamic drive
3.Guidance system with low transverse motions (according to ISO 16063-21)

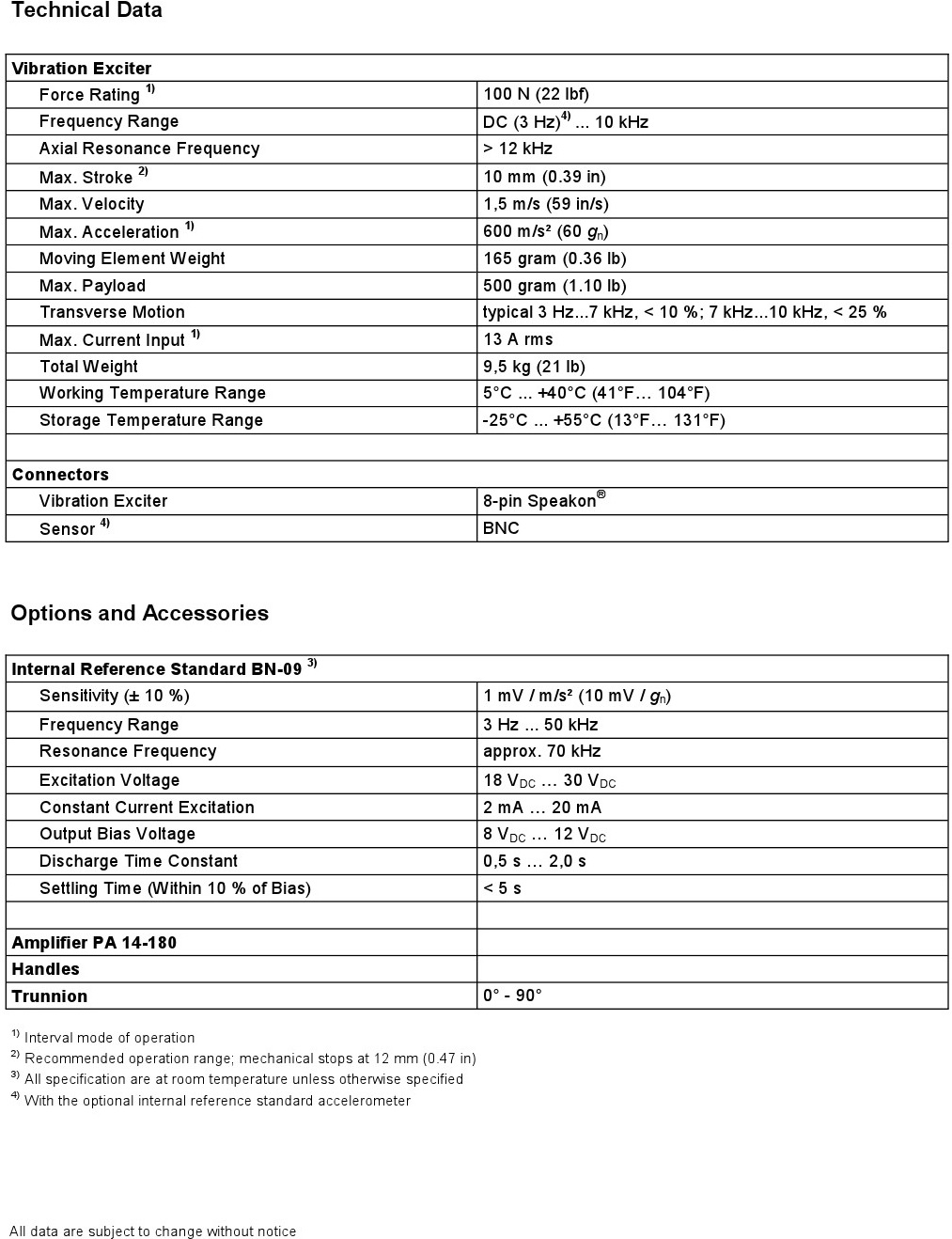

4.Force Rating 100 N
5.Usable Frequency Range DC up to 10 kHz
6.High first axial Resonance Frequency (> 12 kHz)
7.High acceleration amplitudes (up to 60 gn)
8.Effective displacement 10 mm (0.39 in pk-pk)

1.Vibration testing in research and development
2.Modal analysis / Excitation of structures
3.Calibration of vibration sensors, motion trans-ducers and calibrators
4.Quality Assurance in sensor manufacturing
5.Educational demonstrations
