Air-bearing high-frequency calibration exciter
型號 :
SE-09

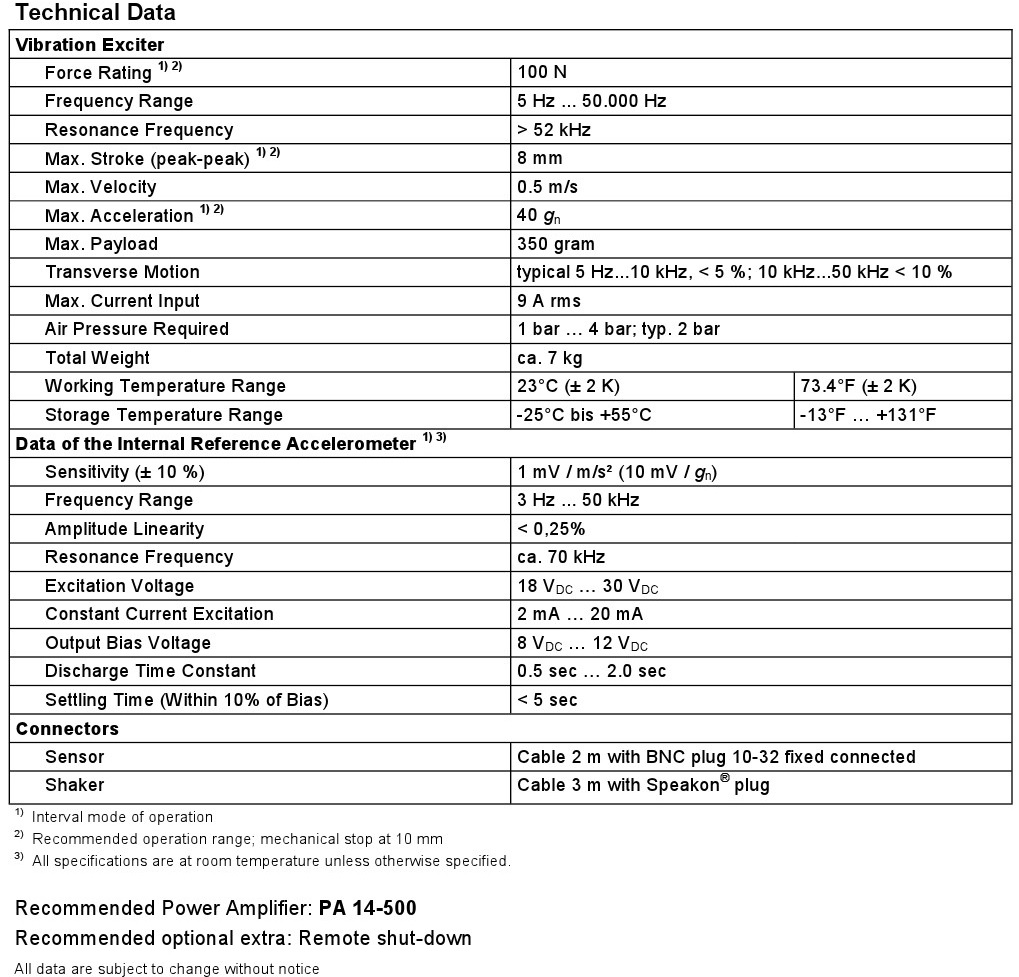

1.Max. force: 100 N
2.Max. displacement pk-pk: 8 mm
3.Frequency range: DC - 50 kHz (internal reference standard 5 Hz - 50 kHz)
4.Resonance frequency: 52 kHz
2.Max. displacement pk-pk: 8 mm
3.Frequency range: DC - 50 kHz (internal reference standard 5 Hz - 50 kHz)
4.Resonance frequency: 52 kHz
The SE-09 is a high-tech product, which is the result of extensive theoretical and practical examinations. It is designed specially for the usage in calibration laboratories and in national institutes.
A significant result of this examinations is the appearance of the first axial head resonance above 52 kHz. In combination with the used internal reference standard accelerometer a true usable frequency range of 50 kHz appears
A significant result of this examinations is the appearance of the first axial head resonance above 52 kHz. In combination with the used internal reference standard accelerometer a true usable frequency range of 50 kHz appears
Air bearing with ceramic armature
1.Very high first axial head resonance frequency (> 52 kHz)
2.Very high acceleration amplitudes (up to 40 gn)
3.Insignificant Transverse motions according to ISO 16063-21
4.Usable frequency range up to 50 kHz
5.Usable displacement 8 mm (pk-pk)
6.Maximum mass of DUT 350 gram
7.Extreme wear resistant ceramic armature with defined small electrical conductivity (ESD characteristics)
8.Internal high frequency reference accelerometer (ICP®-type, sensitivity about 10 mV / gn)
1.Very high first axial head resonance frequency (> 52 kHz)
2.Very high acceleration amplitudes (up to 40 gn)
3.Insignificant Transverse motions according to ISO 16063-21
4.Usable frequency range up to 50 kHz
5.Usable displacement 8 mm (pk-pk)
6.Maximum mass of DUT 350 gram
7.Extreme wear resistant ceramic armature with defined small electrical conductivity (ESD characteristics)
8.Internal high frequency reference accelerometer (ICP®-type, sensitivity about 10 mV / gn)
1.Primary calibration of vibration sensors ac-cording to ISO 16063-11
2.Secondary calibration of vibration sensors, calibrators and meters with very high quality and performance according to ISO 16063-21 (comparison calibration)
3.Calibration of reference standard transducers
4.Resonance frequency search up to 50 kHz
5.Testing of micro-mechanic sensors (MEMS)
2.Secondary calibration of vibration sensors, calibrators and meters with very high quality and performance according to ISO 16063-21 (comparison calibration)
3.Calibration of reference standard transducers
4.Resonance frequency search up to 50 kHz
5.Testing of micro-mechanic sensors (MEMS)
